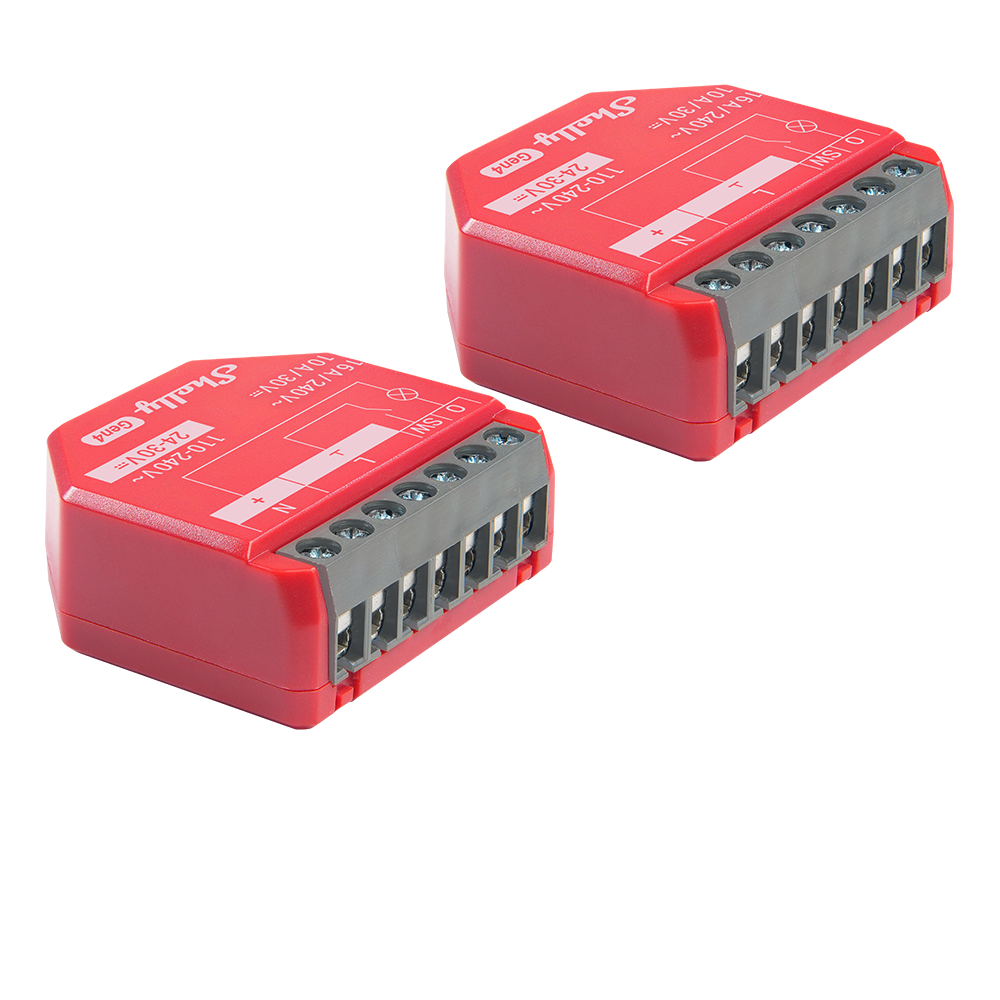

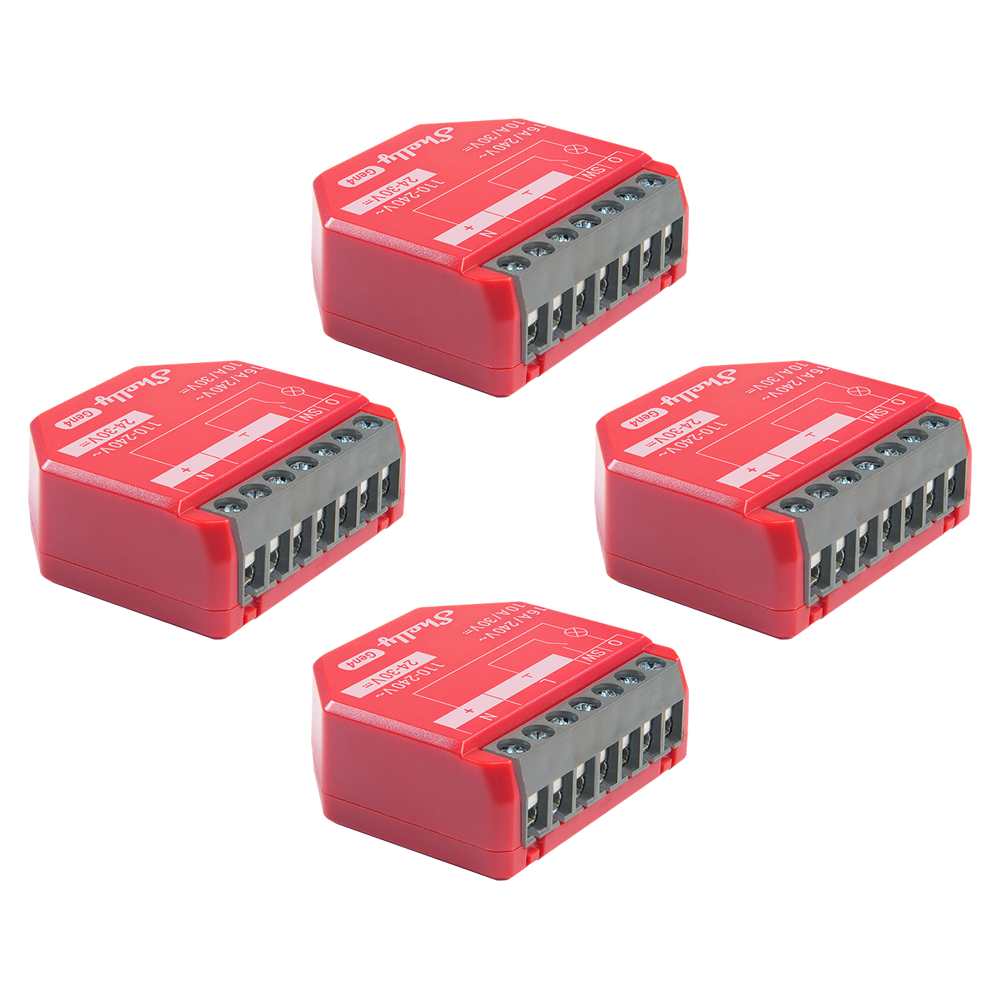

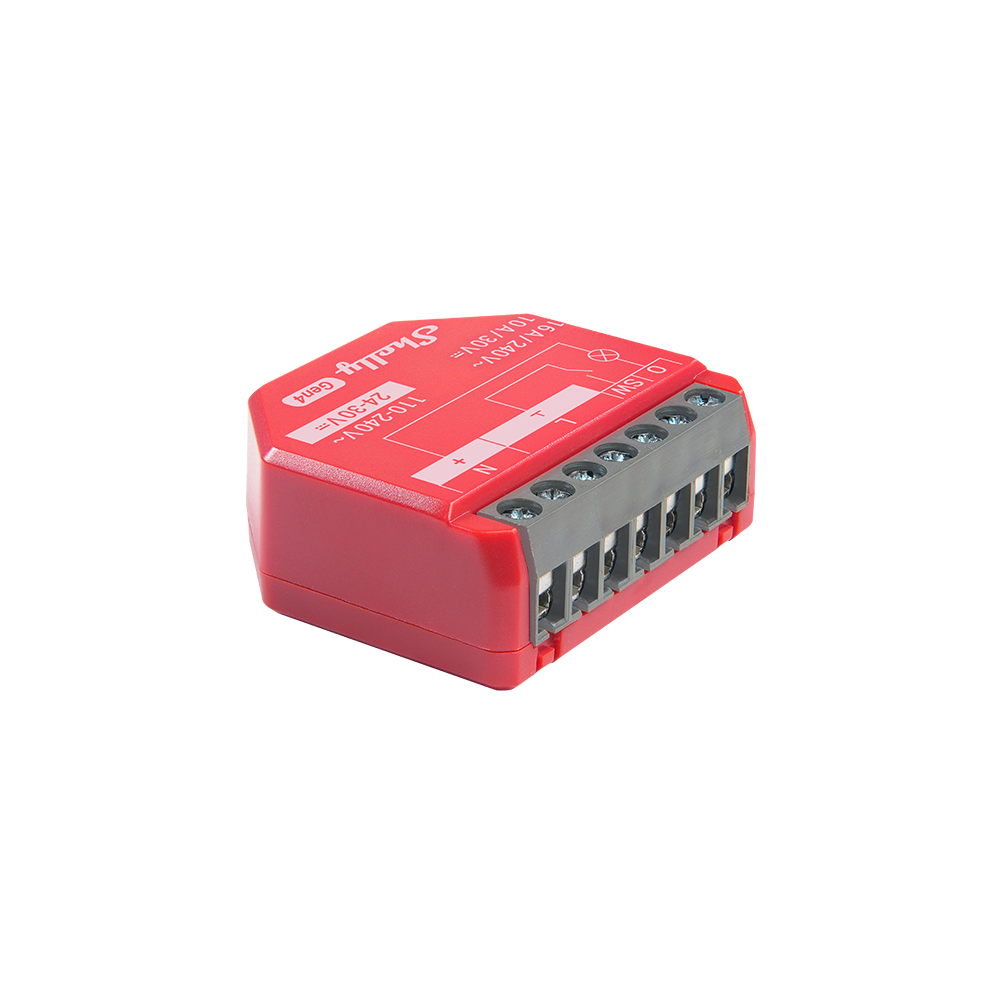

Shelly 1PM Gen4

Shelly 1PM Gen4 is a compact single-channel smart relay with precise power monitoring for lighting, heating and appliance automation.

• Output: 1 relay, up to 16 A at 240 Vac or 10 A at 30 Vdc
• Power supply: 110–240 Vac or 24–30 Vdc
• Energy monitoring: voltage, current, power and energy measurement
• Connectivity: Wi‑Fi 6, Zigbee and Bluetooth 5
• Smart-home standards: Matter and KNXnet/IP
• Automation: schedules, scenes, local actions, scripting, MQTT, HTTPS and WebSockets
• Protection: overheating, overvoltage, overcurrent and overpower cutoff
• Installation: flush-mounted behind a switch or socket
• Manufacturer SKU: FG3800238070717

Use it to switch loads while tracking consumption in real time and integrating the circuit into Shelly, Matter, Zigbee, KNX or other supported automation platforms.
