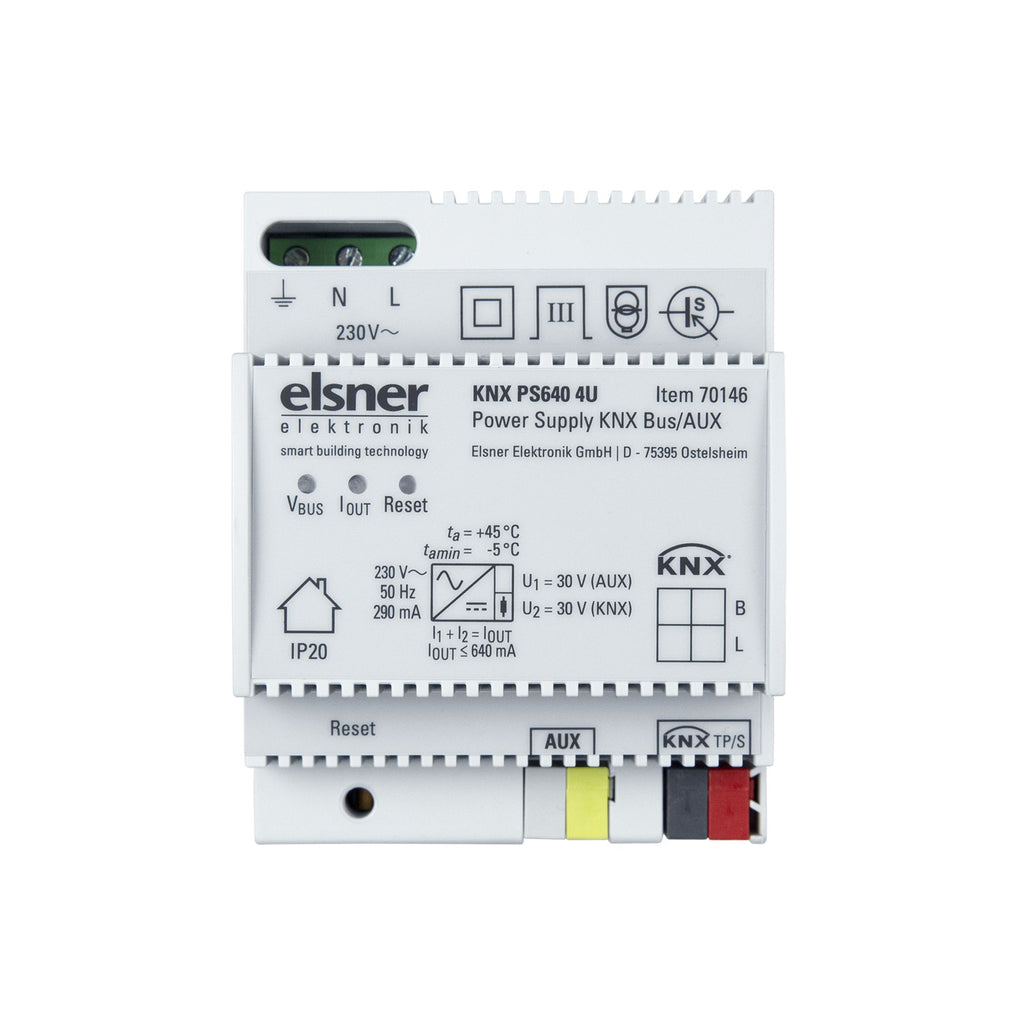

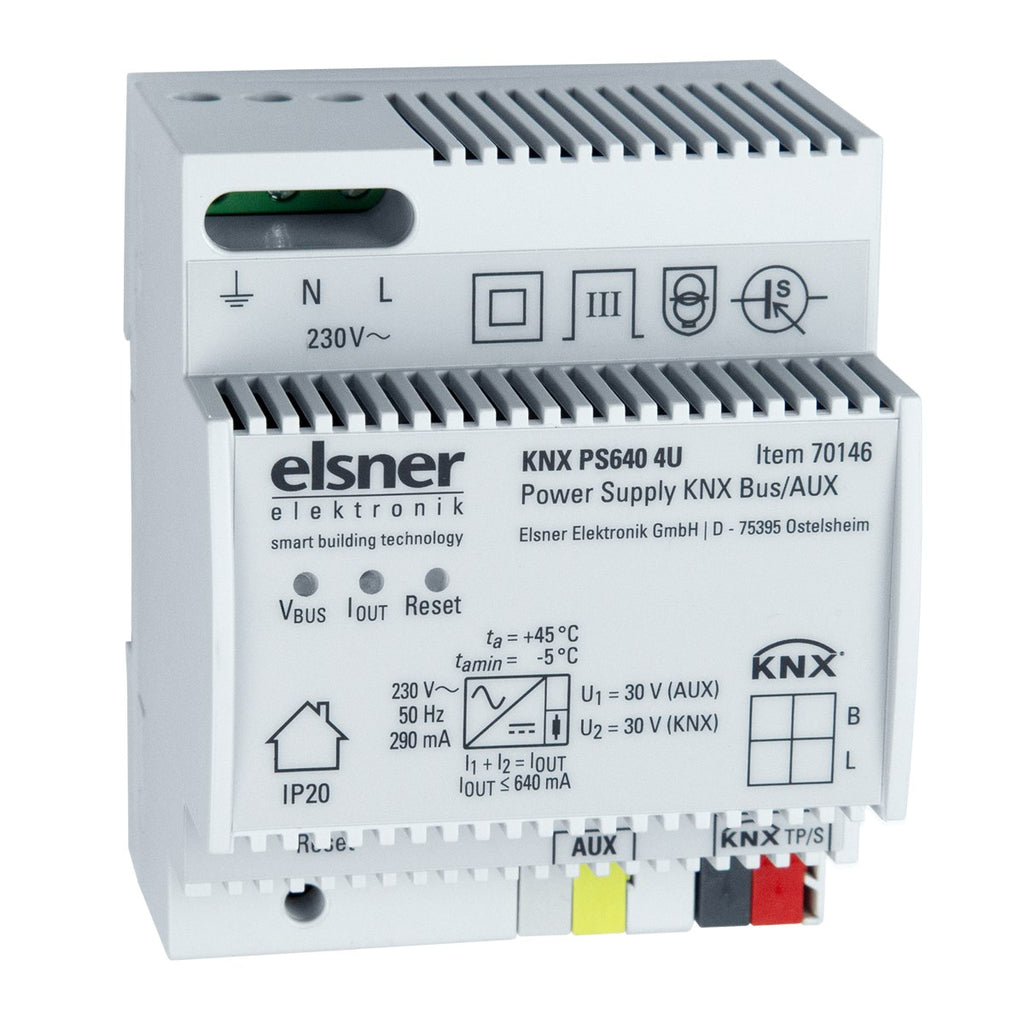

Elsner KNX PS640 4U

Elsner KNX PS640 4U – KNX Power Supply

€274,96€332,70
excl. VATincl. VAT
Skip to product information
Elsner KNX PS640 4U

Elsner KNX PS640 4U – KNX Power Supply

€274,96€332,70
excl. VATincl. VAT
Delivery in 5–14 business days Shipping policy

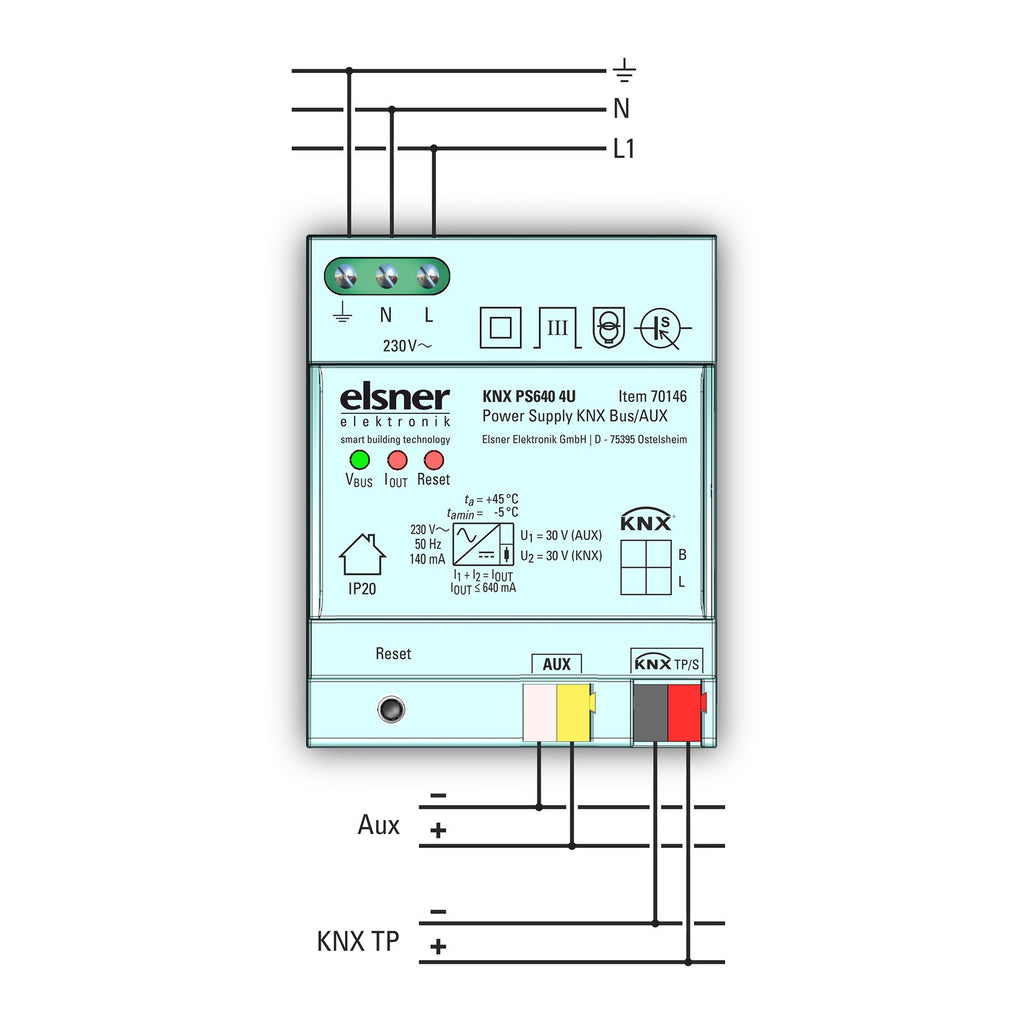

640 mA KNX bus power supply for one TP line, with an additional unchoked 30 V DC auxiliary output. The auxiliary output can supply devices that need a second supply voltage or, with an additional choke, a second line.

  • Outputs: KNX output 28…31 V SELV and AUX output 28…31 V SELV
  • Current: Rated current 640 mA, max. total output current 1.2 A
  • Output protection: Both outputs overload-proof and short-circuit-proof
  • Operation: Bus reset by push-button, LEDs for bus voltage, output current, overload and reset
  • Mains supply: 230 V ±15 %, 50 Hz; mains failure bridging > 100 ms
  • Mounting: 35 mm DIN rail (TH35), 4 modules at 18 mm
  • Dimensions: 94 × 72 × 71 mm (H × W × D)
  • Colour: White RAL 9018
  • Manufacturer reference: 70146

Need help choosing compatible Elsner devices or programming the system? Virasmart in Riga provides KNX design, supply, programming and commissioning — contact our engineers.

Official Elsner product page
