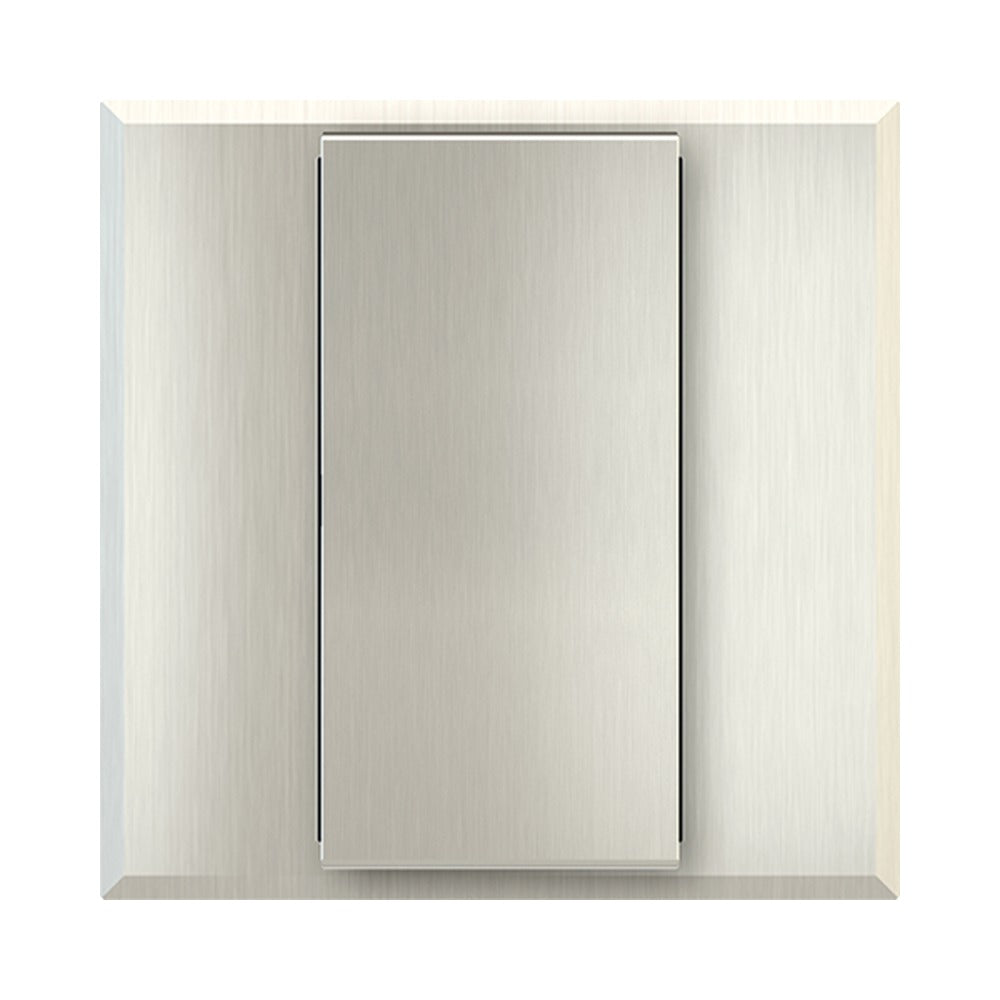

Ekinex ERA KNX pushbutton with thermostat, RGB LED EK-ERA-TP

Ekinex ERA KNX pushbutton with integrated temperature sensor (EK-ERA-TP) or temperature and humidity sensor (EK-ERA-TP-H). One device is configured in ETS as a 1-, 2- or 4-rocker pushbutton; each button has an RGB LED for status feedback. Rockers and frame in the ERA metal finishes are ordered separately.

• Buttons: 1, 2 or 4 rockers (configured in ETS), 4 channels, up to 8 functions, short/long press
• LEDs: one freely programmable RGB LED per button
• Sensors: temperature (EK-ERA-TP) or temperature + relative humidity (EK-ERA-TP-H); room temperature controller function
• Power supply: 30 V DC from the KNX bus, current consumption 23 mA (typical)
• Dimensions: 89 x 89 x 32.5 mm (pushbutton body only), 50 g
• Mounting: flush-mounted on a round or square box
• Operating temperature: -5 … +45 °C, IP20 (installed)
• In the box: KNX bus terminal, metal bracket for round/square box, fixing screws
• Finishes of rockers and frames: Steel Brushed (SSB), Quantum Carbon (SBV), Warm Brass (GWB), Bronze Corked (GBD)
• Configuration: ETS5 or later (application APEKERATP)
• Manufacturer reference: EK-ERA-TP / EK-ERA-TP-H

Sold separately, required for installation: rockers and frame for the chosen layout – 1 rocker: EK-T2V + Tank frame EK-FOD; 2 rockers: EK-TEV-2 + EK-FOD; 4 rockers: EK-TEV-4 + Slim frame EK-FOE. Optional: custom-symbol rocker EK-TEV-P, rocker removal tool EK-AST-1.
