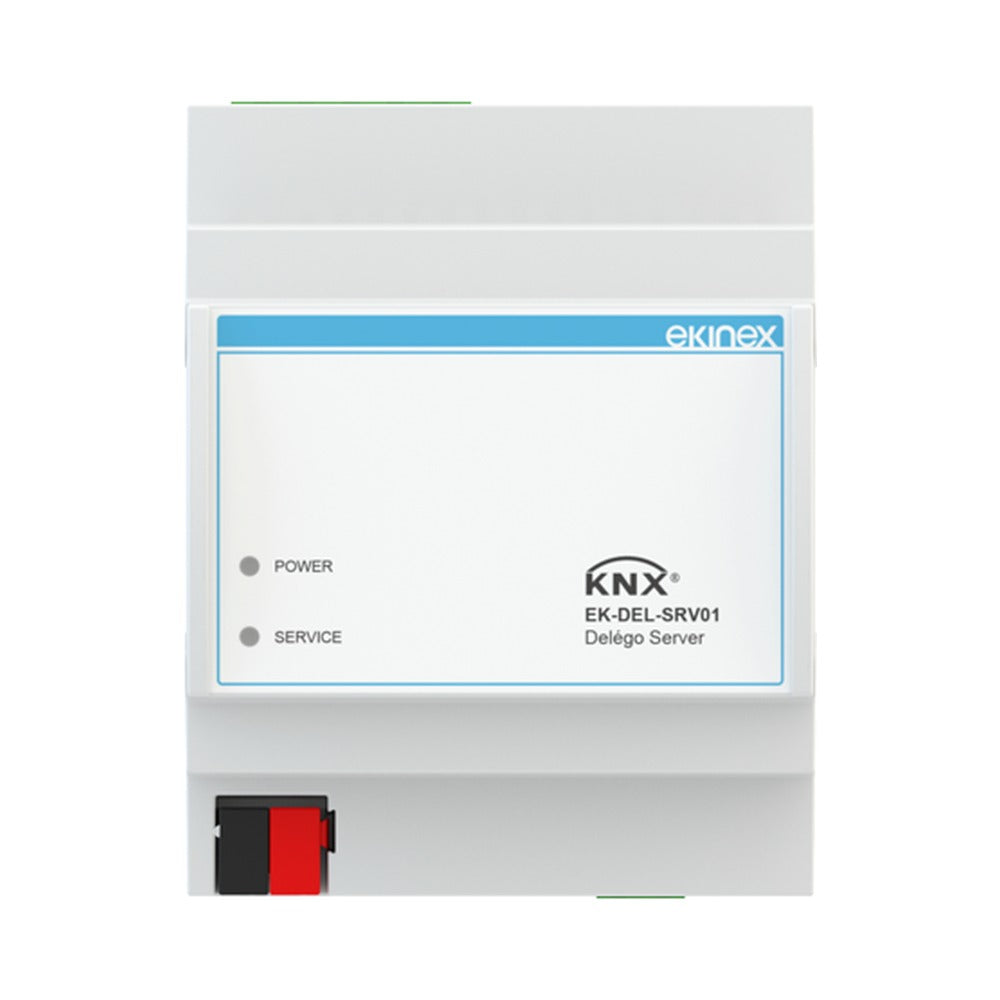

Ekinex Delégo KNX visualisation server

Delégo Server is the Ekinex visualisation and supervision server for KNX installations. It is controlled through Delégo Panels and the free Delégo app, locally or remotely via the Ekinex Cloud. The project is imported directly from ETS and configured in the browser without programming: scenes, time schedules, logic and notifications. KNX, Modbus and M-Bus are handled natively without extra licences.

• Models: Delégo Server EK-DEL-SRV01 (1500 KNX datapoints) or Delégo Server Mini EK-DEL-SRV01-M (200 KNX datapoints)
• Integrations: KNX, Modbus, M-Bus, Matter, MQTT client/server, Philips Hue (5 bridges), Sonos (30 zones), KNX alarm systems; security systems and IP video door phones with voucher
• Remote access: Ekinex Cloud or direct internet connection, TLS/SSL encryption; Amazon Alexa and Google Assistant
• Functions: ETS import, maps, rooms, trends, LUA logic module, lights, RGBW, heating/cooling, notifications
• Access control: Accédo for 4 rooms included, up to 200 rooms with room licences
• Power supply: PoE or 12–24 V DC, 240 mA at 24 V
• Hardware: quad-core processor, 1 GB RAM
• Connections: LAN RJ45 (PoE), RS485, RS232, USB 2.0, micro SD slot, KNX
• Mounting: DIN rail, 4 modules; 71 × 90 × 63 mm
• Protection: IP20, insulation class II; operation 0 to +40 °C
• Manufacturer reference: EK-DEL-SRV01 / EK-DEL-SRV01-M

Compatible with: Delégo Panel 4″ Smart, 8″ Smart, 10″ Plus, 15″ Plus, Delégo Panel 5″ EK-DEL-5PAN, address upgrades, feature vouchers and Accédo room licences.
