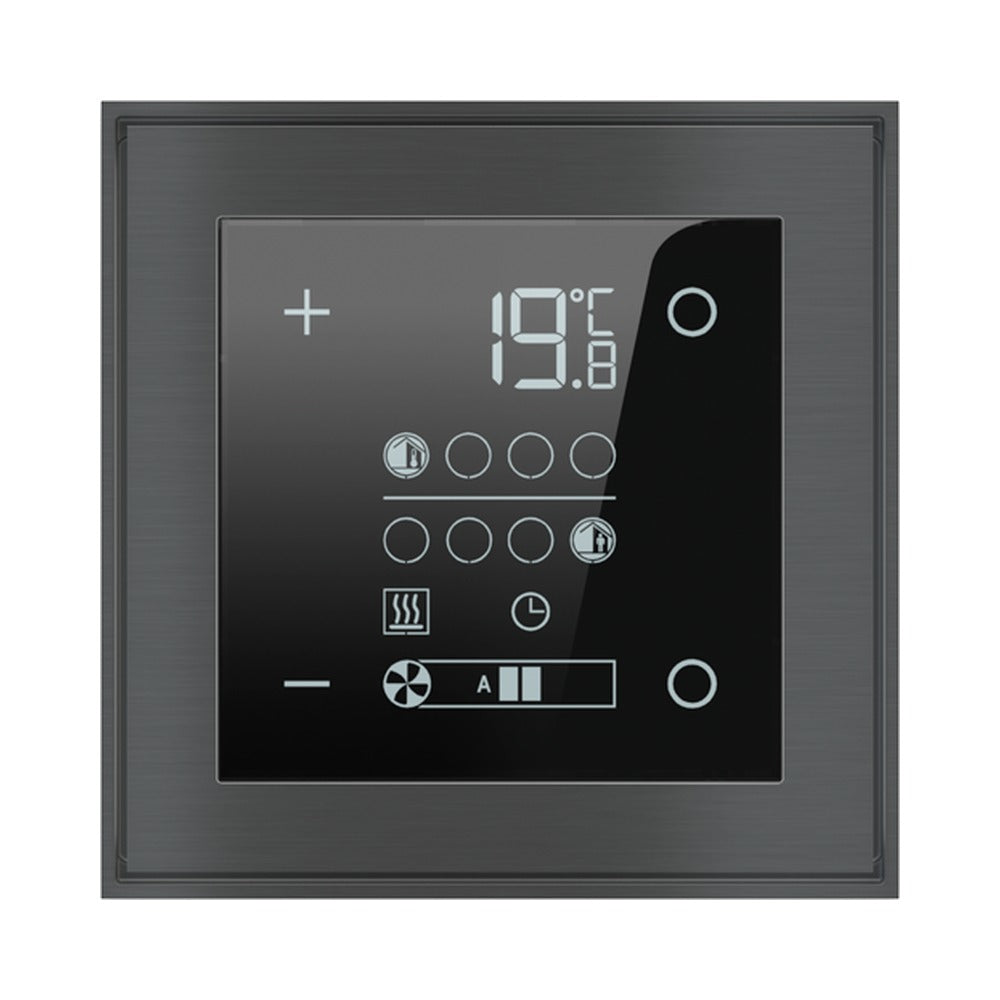

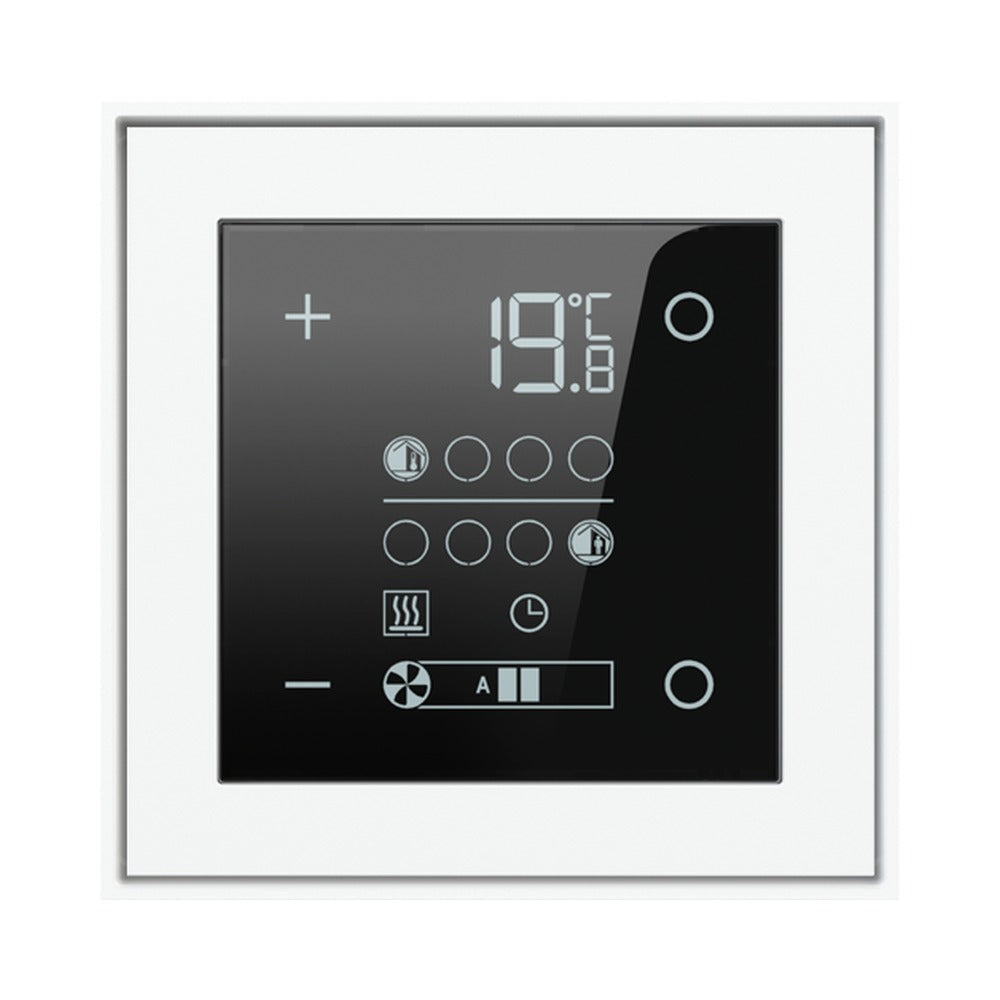

Ekinex 71 series KNX room thermostat with LCD EK-E73-TP-EASY

KNX room thermostat of the Ekinex 71 series with backlit LCD and 4 capacitive keys. The EASY version uses a single on/off operating mode for simple heating/cooling control of a room or zone with KNX actuators. Fits 60 × 60 mm plate windows. Bus-powered.

• Display: LCD with adjustable backlight, 4 capacitive keys
• Sensors: integrated temperature sensor
• Version: EASY (single on/off mode)
• Power supply: KNX bus 30 V DC, no auxiliary supply, < 13 mA
• Mounting: round or square wall box (fixing holes 60 mm apart) with support EK-SMQ-71-1; Form, 'NF, Deep and Surface plates
• Protection / weight: IP20 (installed), 90 g with support
• In the box: device, KNX terminal and fixing screws only
• Configuration: ETS5 or later
• Manufacturer reference: EK-E73-TP-EASY

Sold separately, required for installation: a metal support EK-SMQ-71-1 (rectangular box: EK-SMR-71-1), a plastic adapter (EK-TAQE-1-NF for 'NF/Deep plates, EK-TAQE-1 with a Form frame, EK-TAS-Q for Surface), a plate with a 60 × 60 mm window ('NF EK-PQS, Deep EK-DQS, Surface EK-SQS; 2-fold/3-fold: EK-P2S/D2S/S2S, EK-D3G) and, for the Form look, a Form frame EK-FOQ (no rockers needed).
