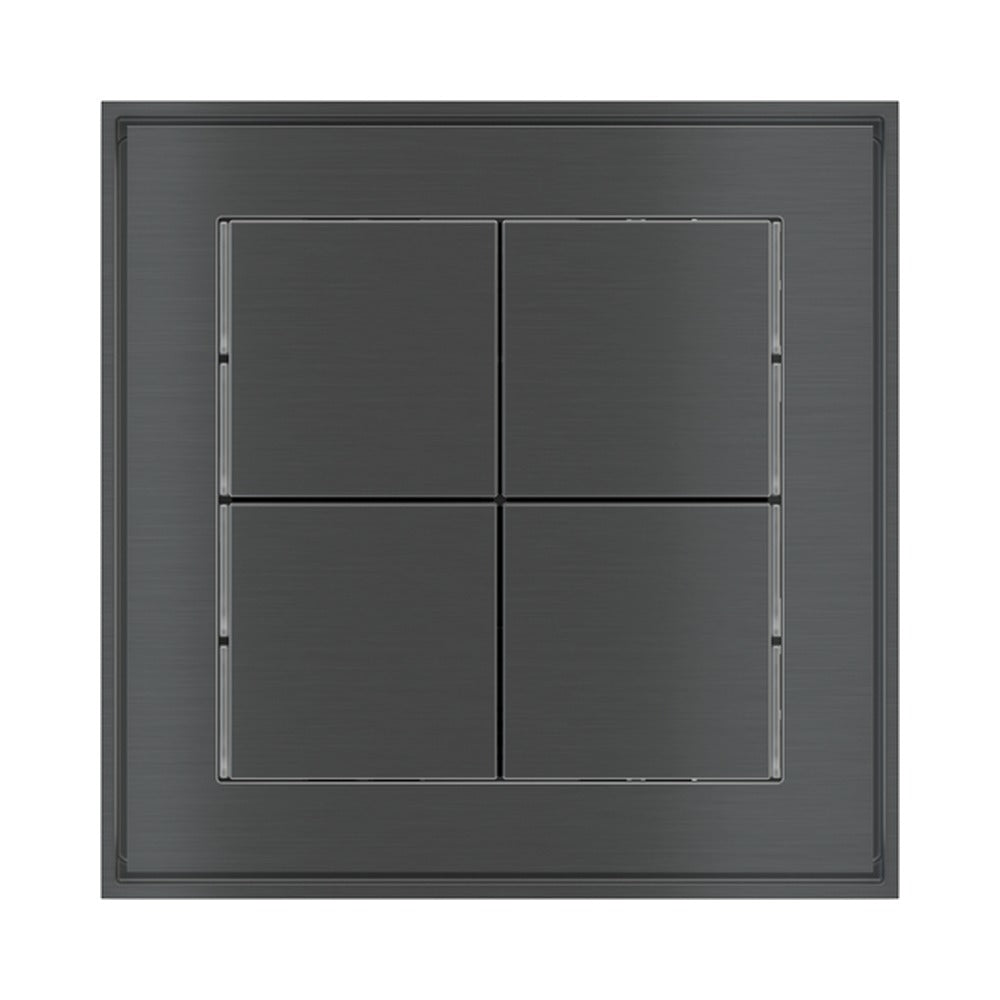

Ekinex EK-E23-TP with 4 square rockers EK-T4Q, Form frame EK-FOQ and plate EK-PQS (rockers, frame and plate not included)

Ekinex 71 series KNX 4-channel basic pushbutton (no LED) EK-E23-TP

€151,20€182,95
excl. VATincl. VAT
Skip to product information
Ekinex EK-E23-TP with 4 square rockers EK-T4Q, Form frame EK-FOQ and plate EK-PQS (rockers, frame and plate not included)

Ekinex 71 series KNX 4-channel basic pushbutton (no LED) EK-E23-TP

€151,20€182,95
excl. VATincl. VAT
Delivery in 5–14 business days Shipping policy
Needed for installation (16)

Frames, rockers and adapters are sold separately — choose the finish and add to cart.

  • €7,00€8,47
  • €10,10€12,22
  • Ekinex square adapter for FF/71/Deep square plates EK-TAQE-1 / EK-TAQ-1
    €5,30€6,41
  • Ekinex square adapter for Surface plates EK-TAS-Q
    €15,90€19,24
  • Ekinex 'NF/Form square plate 80x80, 60x60 window EK-PQS
    €14,20€17,18
  • Ekinex Deep square plate 87x87, 60x60 window EK-DQS
    €18,70€22,63
  • Ekinex Surface square plate 98x98, 60x60 window EK-SQS
    €65,40€79,13
  • Ekinex 'NF/Form 2-fold plate 151x80, 60x60 + 60x60 EK-P2S
    €18,30€22,14
  • Ekinex Deep 2-fold plate 158x87, 60x60 + 60x60 EK-D2S
    €21,90€26,50
  • Ekinex Surface 2-fold plate 168x98, 60x60 + 60x60 EK-S2S
    €94,00€113,74
  • Ekinex Deep 3-fold plate 229x87, 60x60 + 55x55 + 55x55 EK-D3G
    €198,20€239,82
  • Ekinex 71 series square rocker 60x60, pack of 1 EK-T1Q
    €73,90€89,42
  • Ekinex 71 series vertical rockers 30x60, pack of 2 EK-T2R
    €105,70€127,90
  • Ekinex 71 series square rockers 30x30, pack of 4 EK-T4Q
    €150,20€181,74
  • Ekinex 71 series horizontal rockers 60x15, pack of 4 EK-T4R
    €150,20€181,74
  • Ekinex FF / 71 series square frame Form 86x86 EK-FOQ
    €22,30€26,98

Basic KNX 4-fold pushbutton of the Ekinex 71 series without LEDs, for switching, dimming, shutters and other programmable KNX functions. Fits 60 × 60 mm plate windows of Form, 'NF, Deep and Surface plates. Bus-powered.

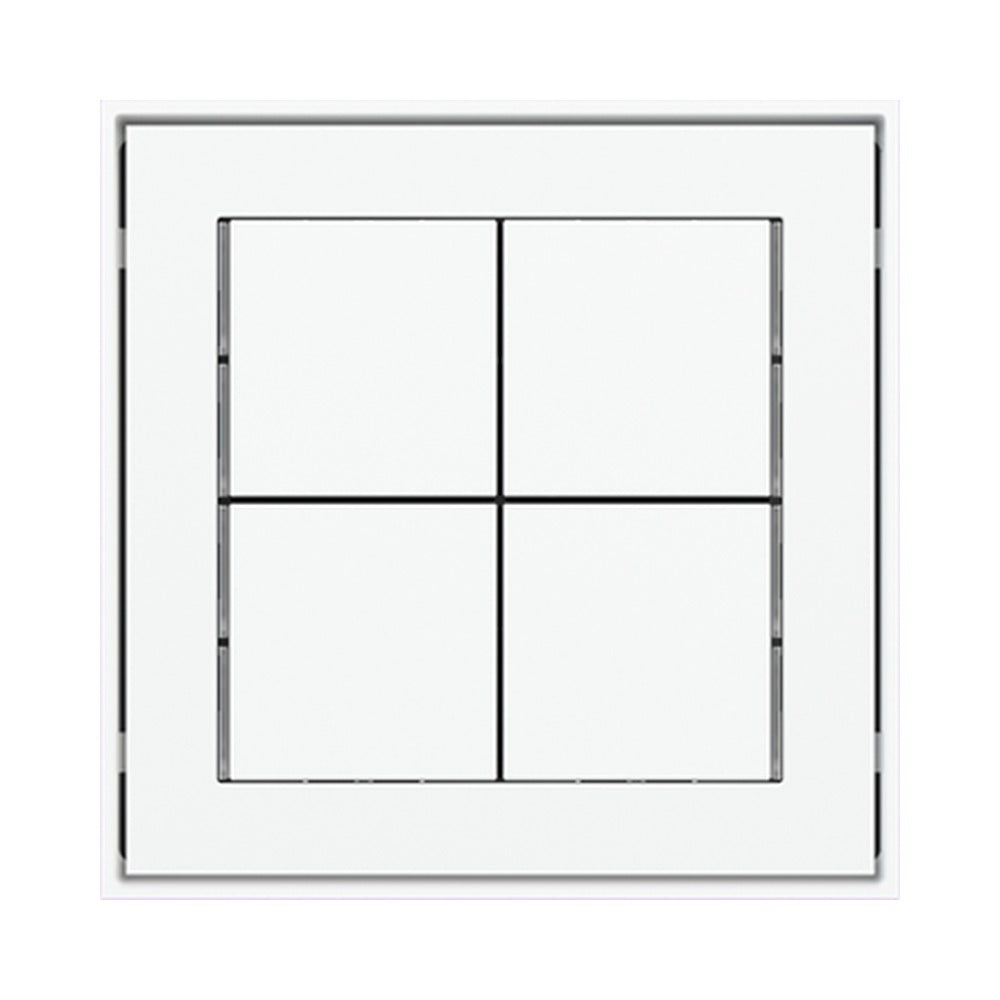

Rockers, plate, frame, metal support and adapters are not included. The photos show the device fitted with rockers, Form frame and plate, which are ordered separately – see «Needed for installation» above.

  • Channels: 4 channels, up to 8 independent functions
  • LEDs: none (basic version)
  • Power supply: KNX bus 30 V DC, no auxiliary supply, < 15 mA
  • Mounting: round or square wall box (fixing holes 60 mm apart) with support EK-SMQ-71-1; Form, 'NF, Deep and Surface plates
  • Dimensions: 81 × 77 × 21 mm (W × H × D)
  • Protection / weight: IP20 (installed), 70 g with support
  • In the box: device, KNX terminal and fixing screws only
  • Configuration: ETS5 or later
  • Manufacturer reference: EK-E23-TP

Sold separately, required for installation: a metal support EK-SMQ-71-1 (rectangular box: EK-SMR-71-1), a plastic adapter (EK-TAQE-1-NF for 'NF/Deep plates, EK-TAQE-1 with a Form frame, EK-TAS-Q for Surface), a plate with a 60 × 60 mm window ('NF EK-PQS, Deep EK-DQS, Surface EK-SQS; 2-fold/3-fold: EK-P2S/D2S/S2S, EK-D3G), one rocker kit (EK-T1Q, EK-T2R, EK-T4Q or EK-T4R) and, for the Form look, a Form frame EK-FOQ.

Official Ekinex product page
