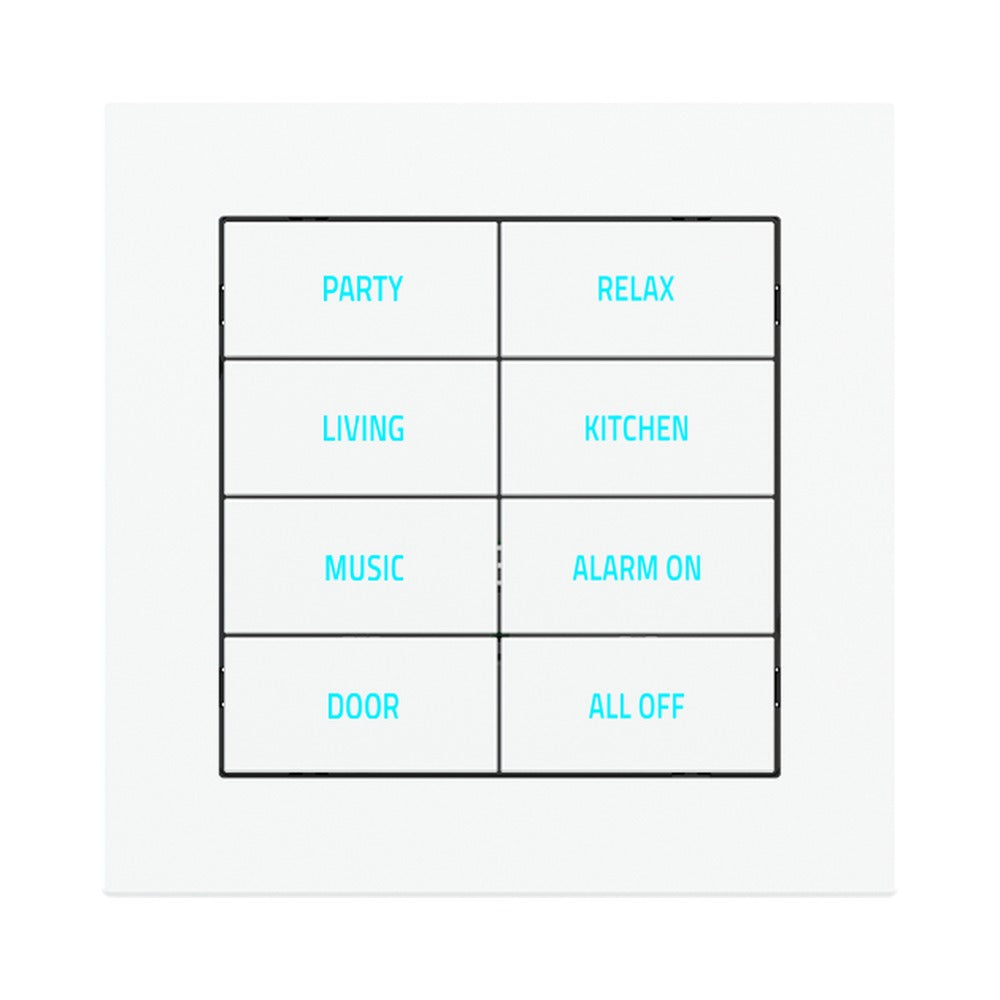

Ekinex EK-E2E-TP-8 – finished look (rockers and frame sold separately)

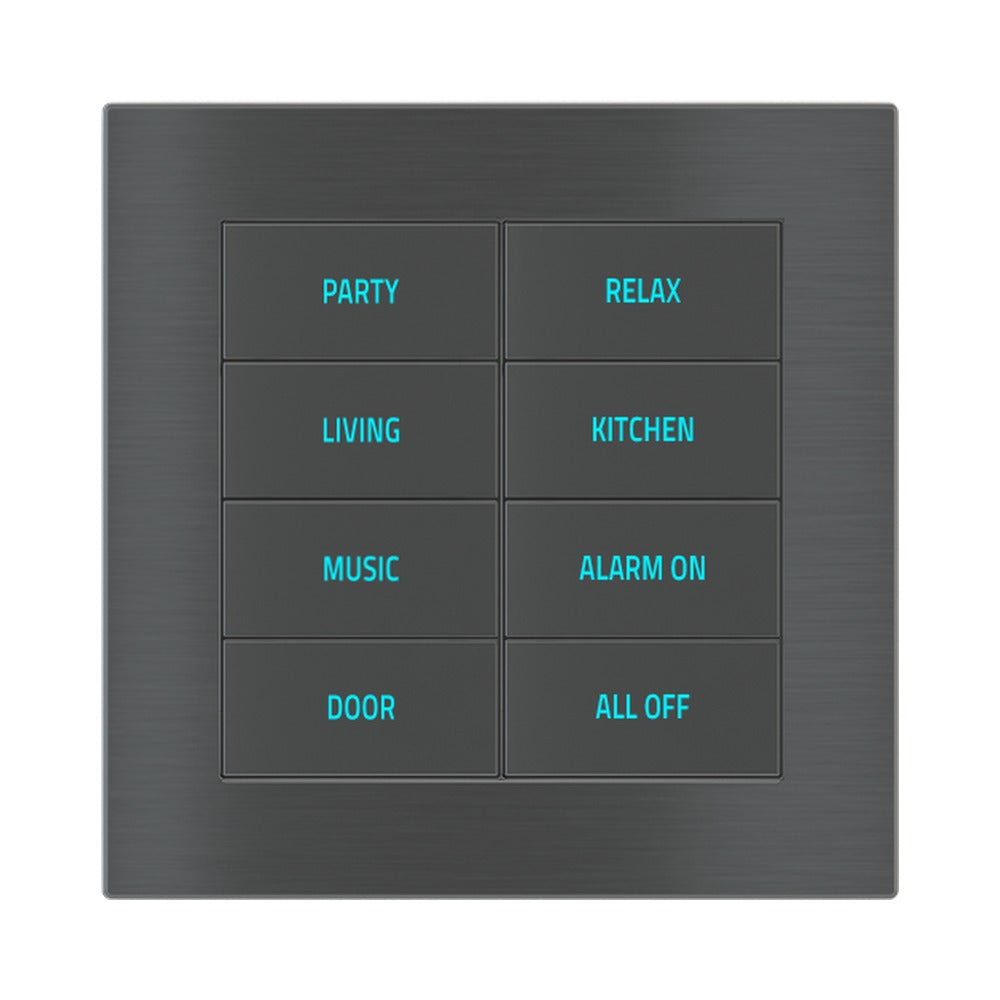

Ekinex 20venti KNX 8-rocker pushbutton with backlit symbols and proximity sensor EK-E2E-TP-8

€217,80€263,54
excl. VATincl. VAT
Skip to product information
Ekinex EK-E2E-TP-8 – finished look (rockers and frame sold separately)

Ekinex 20venti KNX 8-rocker pushbutton with backlit symbols and proximity sensor EK-E2E-TP-8

€217,80€263,54
excl. VATincl. VAT
Delivery in 5–14 business days Shipping policy
Needed for installation (10)

Frames, rockers and adapters are sold separately — choose the finish and add to cart.

  • €7,00€8,47
  • Ekinex square adapter for FF/71/Deep square plates EK-TAQE-1 / EK-TAQ-1
    €5,30€6,41
  • Ekinex square adapter for Surface plates EK-TAS-Q
    €15,90€19,24
  • Ekinex Deep square plate 87x87, 60x60 window EK-DQS
    €18,70€22,63
  • Ekinex Surface square plate 98x98, 60x60 window EK-SQS
    €65,40€79,13
  • Ekinex Deep rectangular plate 128x87, 60x60 window EK-DRS
    €18,80€22,75
  • Ekinex Deep 2-fold plate 158x87, 60x60 + 60x60 EK-D2S
    €21,90€26,50
  • Ekinex Deep 3-fold plate 229x87, 60x60 + 55x55 + 55x55 EK-D3G
    €198,20€239,82
  • Ekinex Surface 2-fold plate 168x98, 60x60 + 60x60 EK-S2S
    €94,00€113,74
  • Ekinex 20venti rockers 30x15 with backlit symbols, pack of 4 EK-T4R-20
    €23,00€27,83

KNX 8-rocker pushbutton of the Ekinex 20venti series with RGB-backlit text/symbols and proximity sensor: switching, dimming, shutters and other programmable functions, plus room thermostat via the integrated temperature sensor. Fits 60 × 60 mm windows of Deep and Surface plates.

  • Rockers: 8 rockers 30 × 15 mm, up to 8 independent functions
  • LEDs: RGB LED for each freely programmable rocker
  • Sensors: integrated temperature sensor (room thermostat function) and proximity sensor
  • Power supply: KNX bus 30 V DC, no auxiliary supply, < 17 mA
  • Mounting: round or square wall box (fixing holes 60 mm apart); Deep and Surface plates only
  • Dimensions: 80 × 80 × 20 mm on square support, 122 × 80 × 35 mm on rectangular support
  • Protection: IP20 (installed)
  • In the box: device, KNX terminal and fixing screws only
  • Configuration: ETS5 or later
  • Manufacturer reference: EK-E2E-TP-8

Sold separately, required for installation: a metal support EK-SMQ-71-1, an adapter (EK-TAQE-1-NF Deep / EK-TAS-Q Surface), a Deep or Surface plate with 60 × 60 mm window (EK-DQS / EK-SQS; rectangular box EK-DRS; 2/3-fold EK-D2S, EK-D3G, EK-S2S) and 8 rockers (2 × EK-T4R-20, pack of 4).
