MINiBOX 0–10 V X3 KNX analogo I/O aktuators, 3 kanāli

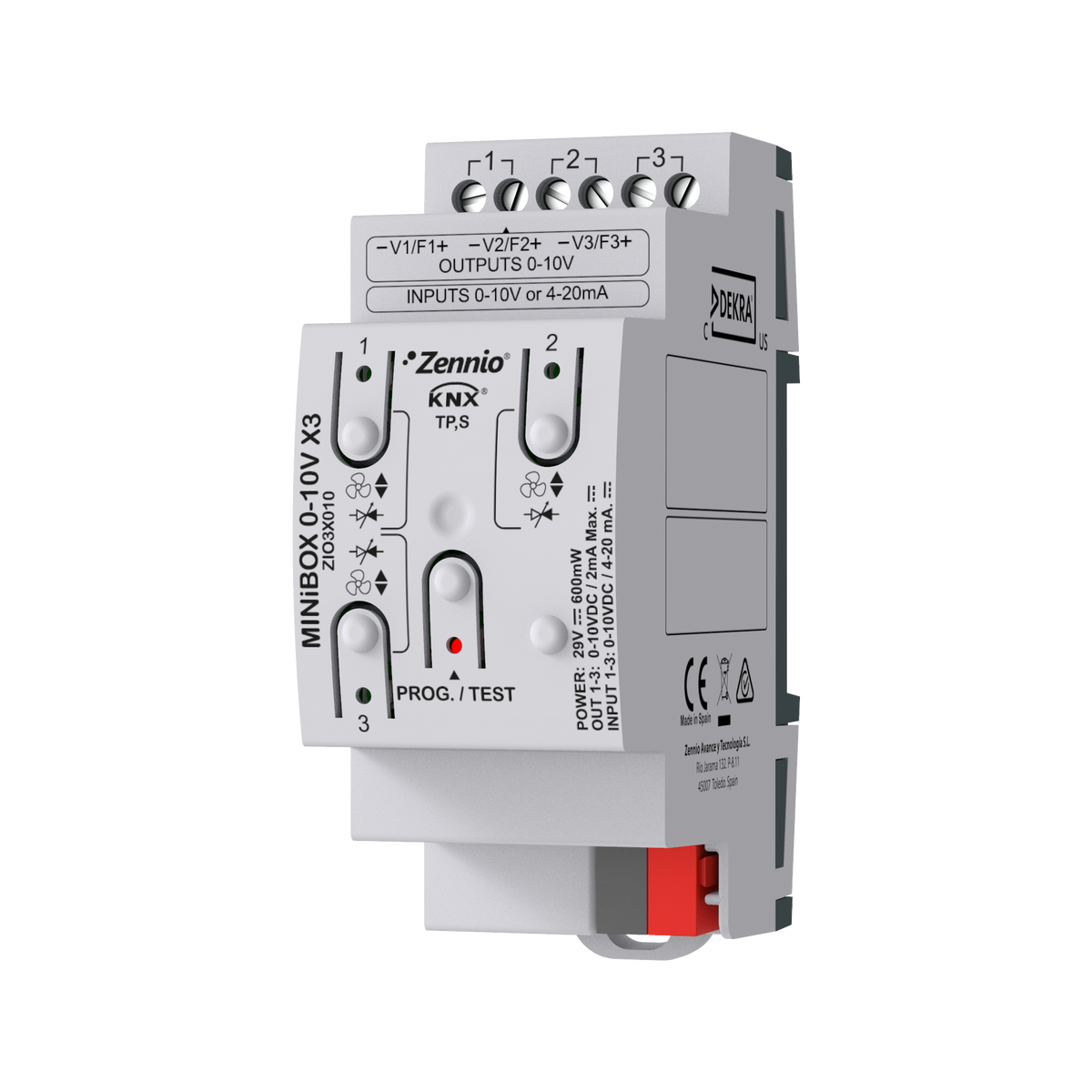

Zennio MINiBOX 0–10 V X3 is a 2-DIN KNX multifunction analogue actuator with three independently configurable channels.

• Channels: 3
• Per-channel modes: 0–10 V output, 0–10 V input or 4–20 mA input
• Fan-coil control: channels can work independently or together for 2- or 4-pipe fan coils with 0–10 V fan and valve control
• Thermostats: 3
• Logic: 10 logical functions
• Manual control: front pushbuttons with channel LEDs
• Width: 2 DIN units
• Manufacturer reference: ZIO3X010
