Lumento X4 v2 KNX Secure LED dimmeris, 4 kanālu, 12–40 Vdc

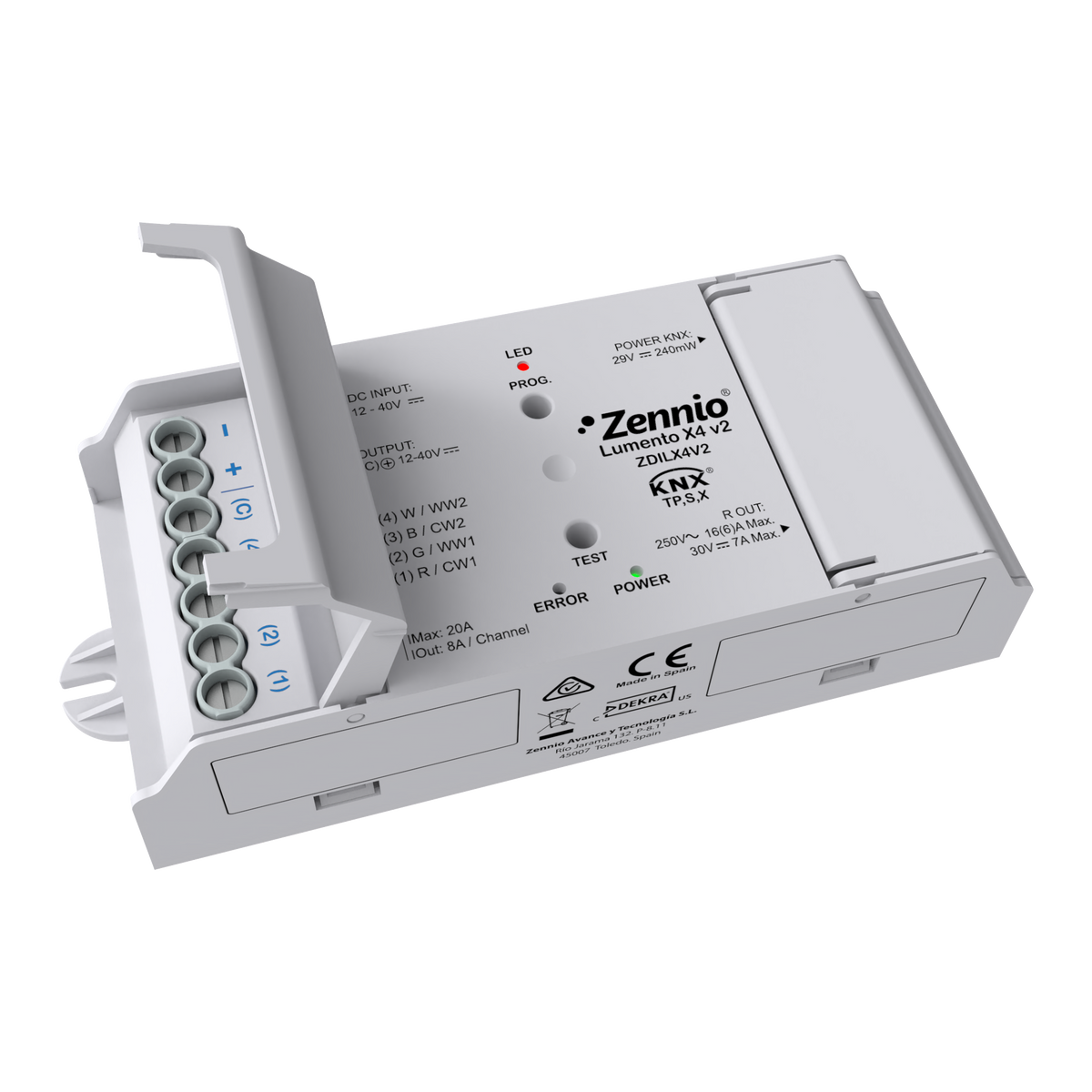

Zennio Lumento X4 v2 four-channel KNX Secure constant-voltage PWM LED dimmer.

• Channels: 4 PWM outputs
• Supply: 12–40 Vdc
• Current: up to 8 A per channel, 20 A total
• PWM frequency: 1000 Hz
• Modes: independent, RGBW, RGB + white and Tunable White
• Power relay: 16 A output for LED power supply or independent use
• Functions: color-temperature and Human Centric Lighting control
• Manual test: local test button
• Security: KNX Secure
• Manufacturer reference: ZDILX4V2
